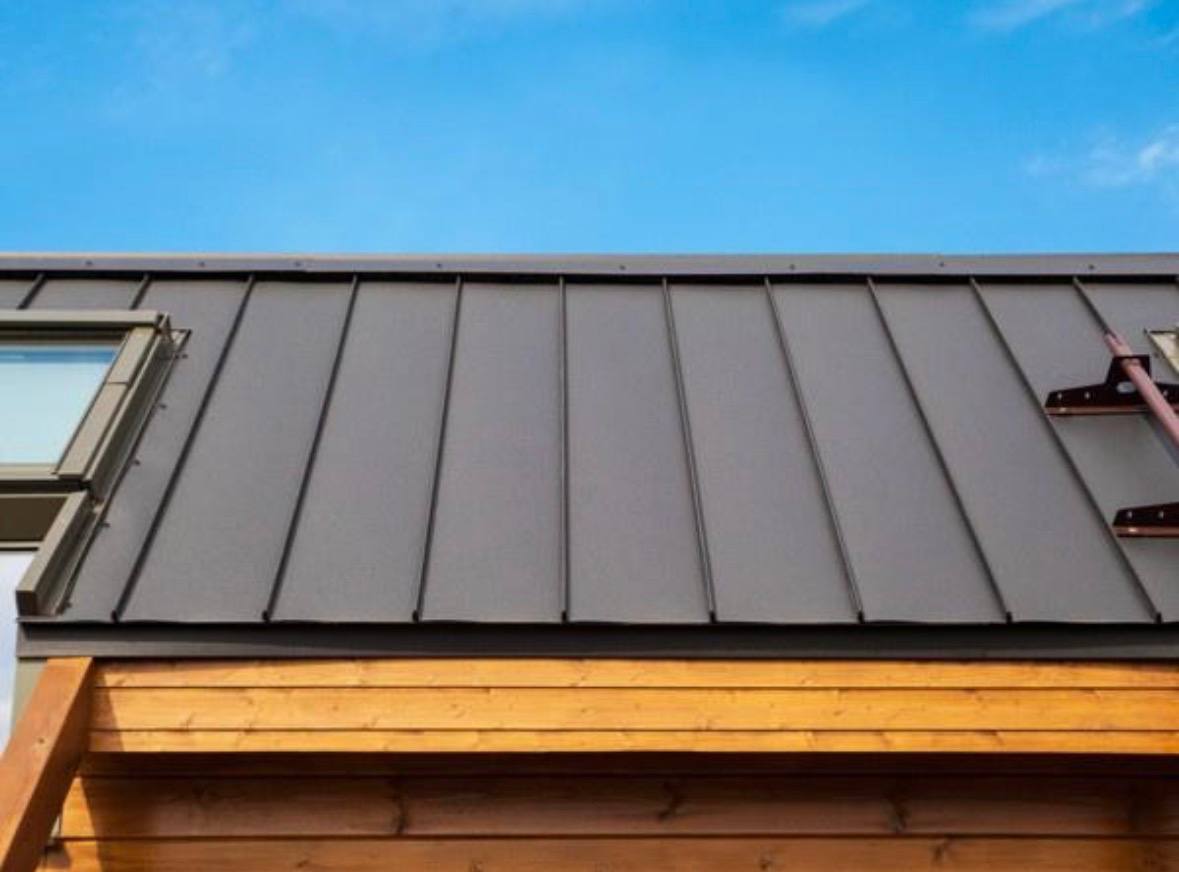

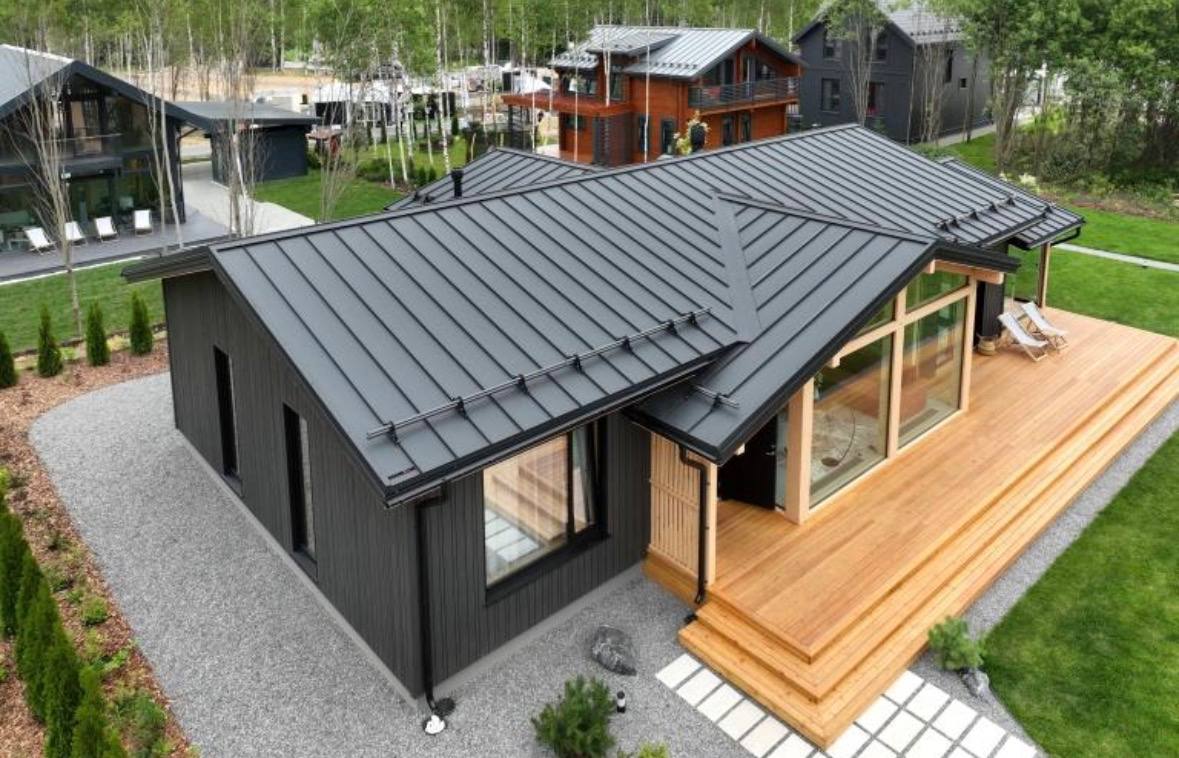

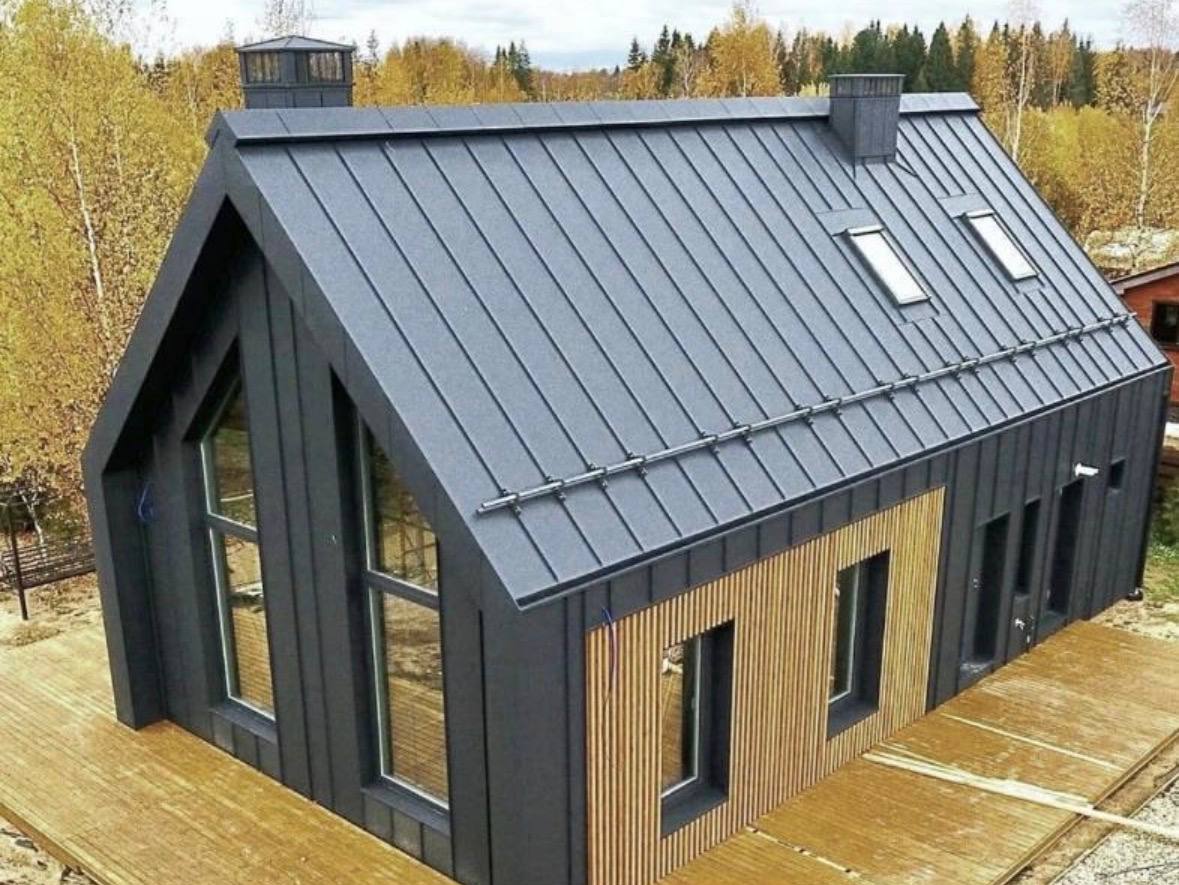

A standing seam metal roof is one of the roofing systems that can be used even on roofs with a very low pitch. This is why it is often used on modern family homes, extensions, dormers, and roofs where traditional tile roofing is no longer suitable.
But what is the minimum pitch for a standing seam metal roof? There is no single answer. It depends mainly on the type of standing seam system, the way individual metal sheets are joined, the roof length, the substrate construction, and the design of individual roof details.
Minimum Pitch for a Standing Seam Metal Roof
With a traditional standing seam roof using a double standing seam, it may be possible to achieve a pitch of approximately 3° to 5°, but such a low pitch requires a properly designed roof build-up and precise execution of all seams and details.
In standard practice, it is safer to work with a greater roof pitch. The exact minimum value should always be checked according to the technical requirements of the manufacturer of the specific roofing system.
As a general guideline:
Type of metal roofing
Approximate minimum pitch
Traditional standing seam roofing – double standing seam
approx. 3–5°*
Standing seam roofing – standard application
approx. 5–7° and above
Click / snap-lock panels
depends on the specific system, generally higher
Trapezoidal metal sheets
depends on profile, sheet length, and joining method
* Use on roofs with a very low pitch requires a properly designed roof build-up, appropriate sealing of the seams, and compliance with the installation requirements of the specific roofing system.
Important: The minimum roof pitch cannot be determined simply because the roofing is described as “standing seam”. The specific roofing system and the manufacturer’s technical requirements are decisive.
Why Is Standing Seam Roofing Suitable for Low-Pitch Roofs?
The main advantage of a standing seam roof is the way the individual metal sheets are joined together.
Unlike some overlapping roofing materials, the individual elements are not connected simply by overlapping them. The edges of the metal sheets are mechanically folded and closed to form a standing seam.
Traditional standing seam roofing can use a double standing seam, which creates a highly reliable connection between individual metal sheets.
Thanks to this system, rainwater can drain safely from the roof even at a relatively low pitch.
What Happens When the Roof Pitch Is Too Low?
The lower the roof pitch, the more slowly water drains from the roof.

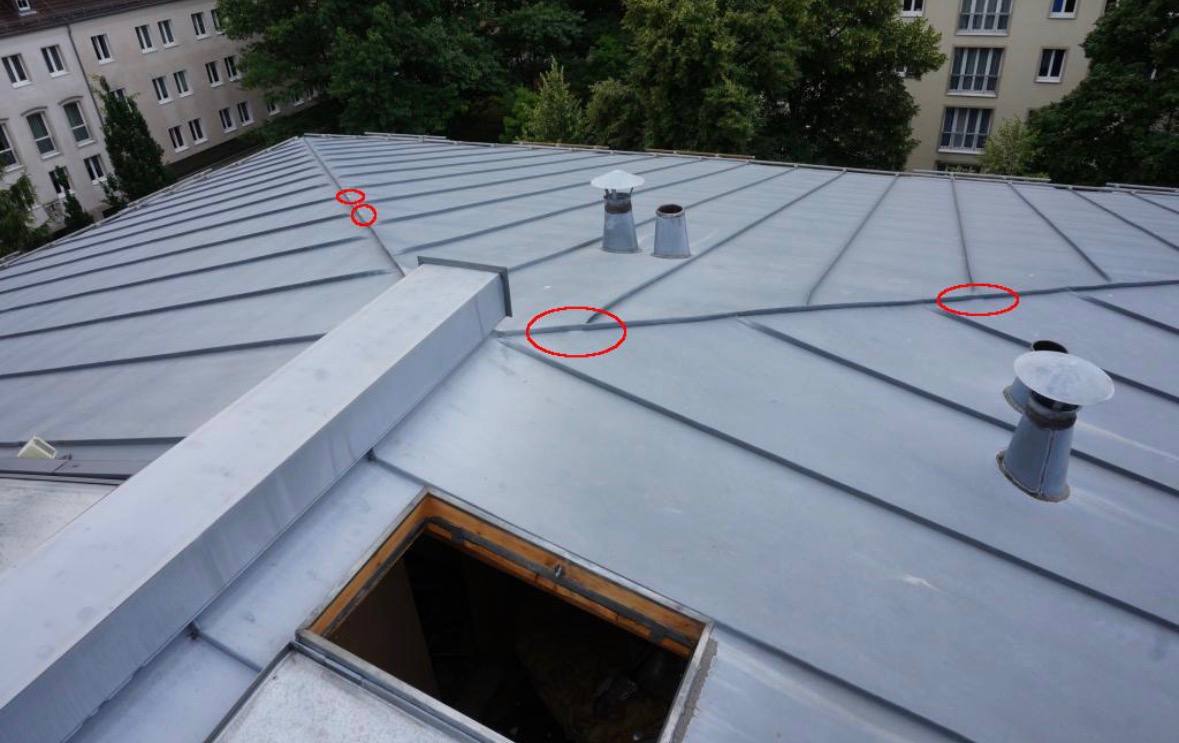

During heavy rainfall, melting snow, or a combination of rain and strong wind, water can remain on the roof surface for longer. This increases the requirements for the watertightness of seams, penetrations, flashings, and other roofing details.
For roofs with a very low pitch, particular attention should therefore be paid to:
correct execution of the standing seams,
seam sealing where required by the system,
length of individual metal sheets,
thermal expansion of the metal,
correct eaves and ridge detailing,
connections to walls,
roof penetrations,
roof drainage,
correct roof build-up beneath the metal roofing.
The closer the roof pitch is to the minimum permitted value, the more important the quality of both the roof design and the installation becomes.
Standing Seam Roofing and Click Panels Are Not the Same
This is an important distinction.
At first glance, Click panels may look very similar to traditional standing seam roofing. However, the joining technology is different.

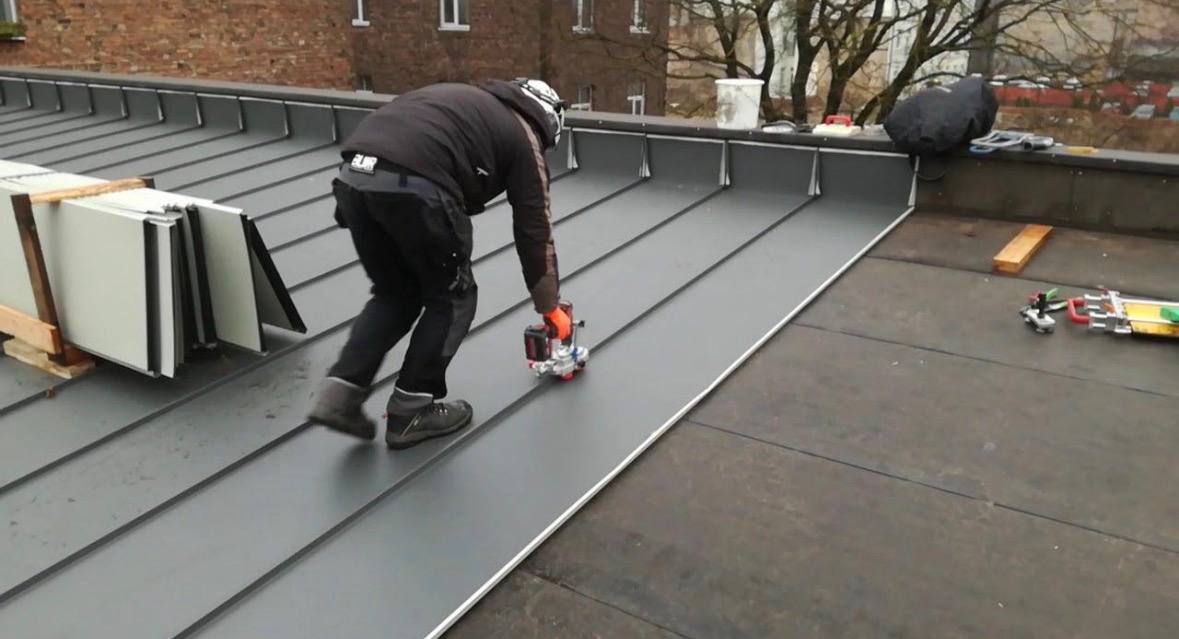

A traditional standing seam is mechanically folded and closed. With a Click system, individual panels are connected using a prefabricated snap-lock joint.
For this reason, the minimum roof pitch specified for a traditional double standing seam cannot automatically be applied to a Click panel.
For example, if a roof project has a pitch of only 5° or 6°, it is essential to check carefully whether the specific Click system is approved for such a low pitch. In some cases, a traditional standing seam roofing system may be a more suitable solution.
What Substrate Does a Standing Seam Roof Require?

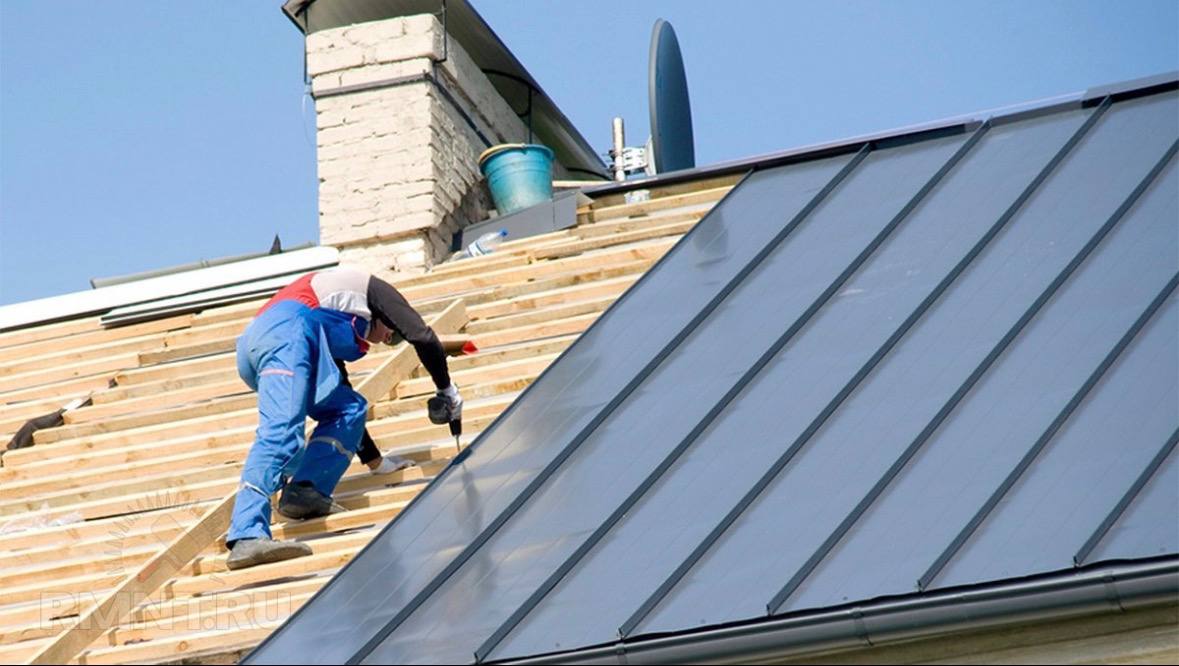

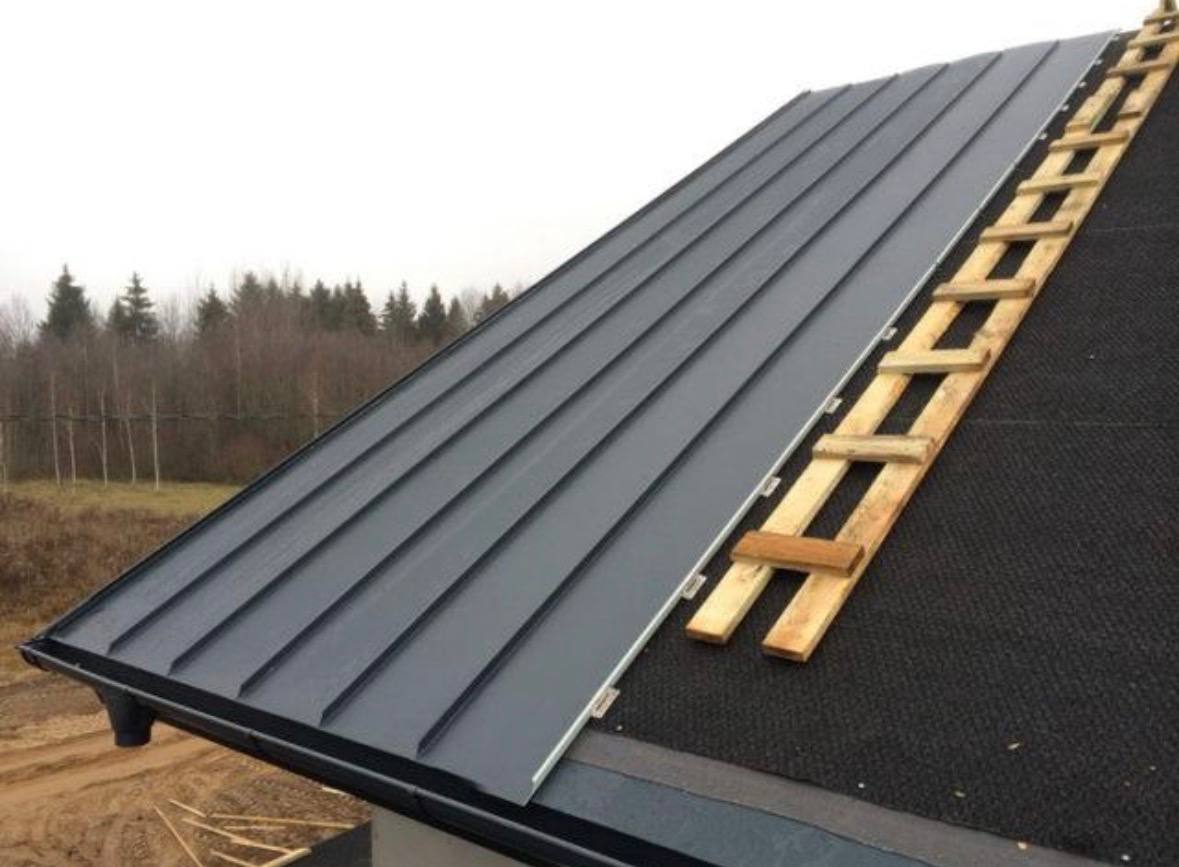

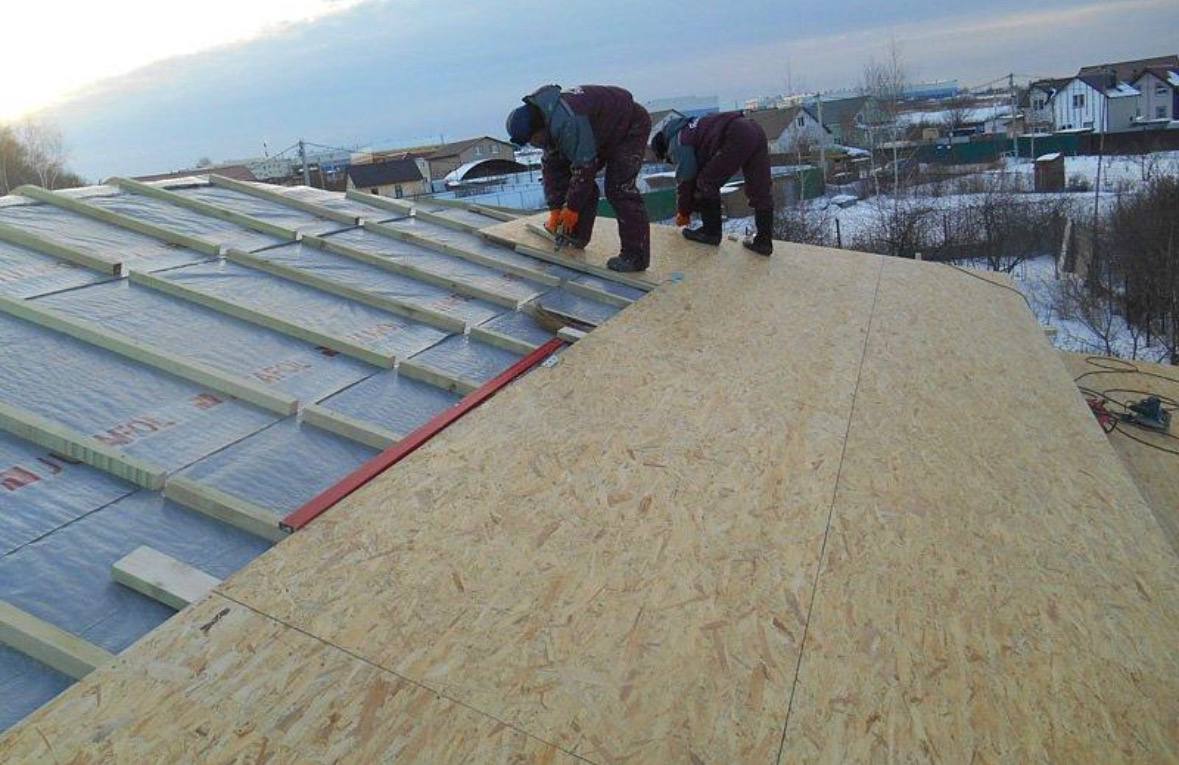

Standing seam roofing is generally installed over a continuous solid substrate.
This may include:
timber boarding,
OSB boards,
another system solution specified by the designer or manufacturer.
Depending on the specific roof build-up, a suitable separation or structural layer may be installed between the metal roofing and the substrate.
A correctly designed roof build-up helps manage potential moisture while also allowing the metal to move as temperatures change.
Thermal Expansion of the Metal Is Very Important
Metal expands when heated and contracts when cooled.
With long standing seam sheets, this movement can be significant. The roofing must therefore not be fixed in a way that prevents the natural movement of the metal. Fixed and sliding clips, or other system-specific fixing methods, are used for this purpose.
Incorrectly designed thermal expansion can cause:
deformation of the metal,
buckling or waviness of individual sheets,
excessive stress on the seams,
problems around the eaves or ridge.

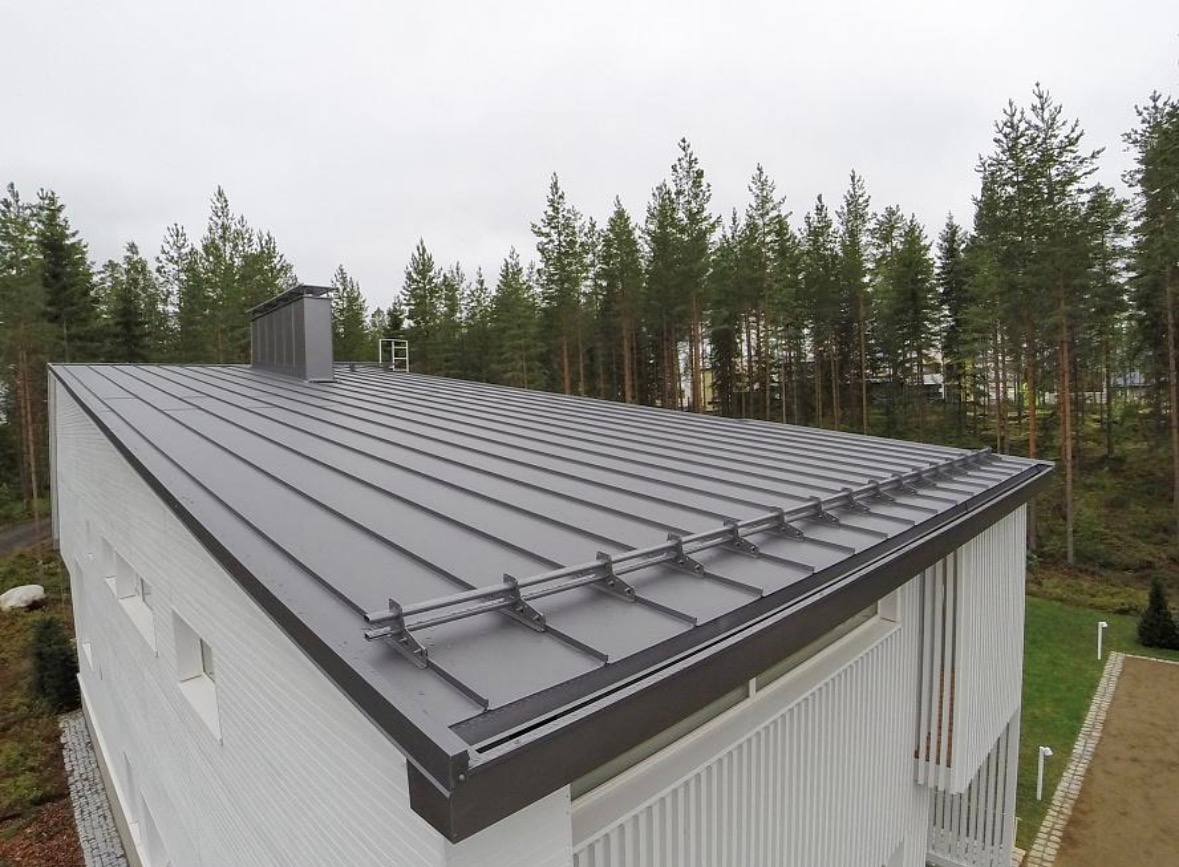

Is Standing Seam Roofing Suitable for a 5° Roof Pitch?
Yes, it can be, but it depends on the specific roofing system.
At a roof pitch of around 5°, increased attention must be paid to the complete roof build-up and all individual details.
It is not enough simply to order standing seam sheets and install them on the roof. The substrate, seams, sealing, eaves, ridge, penetrations, and connections to other structures must all be properly designed and executed.

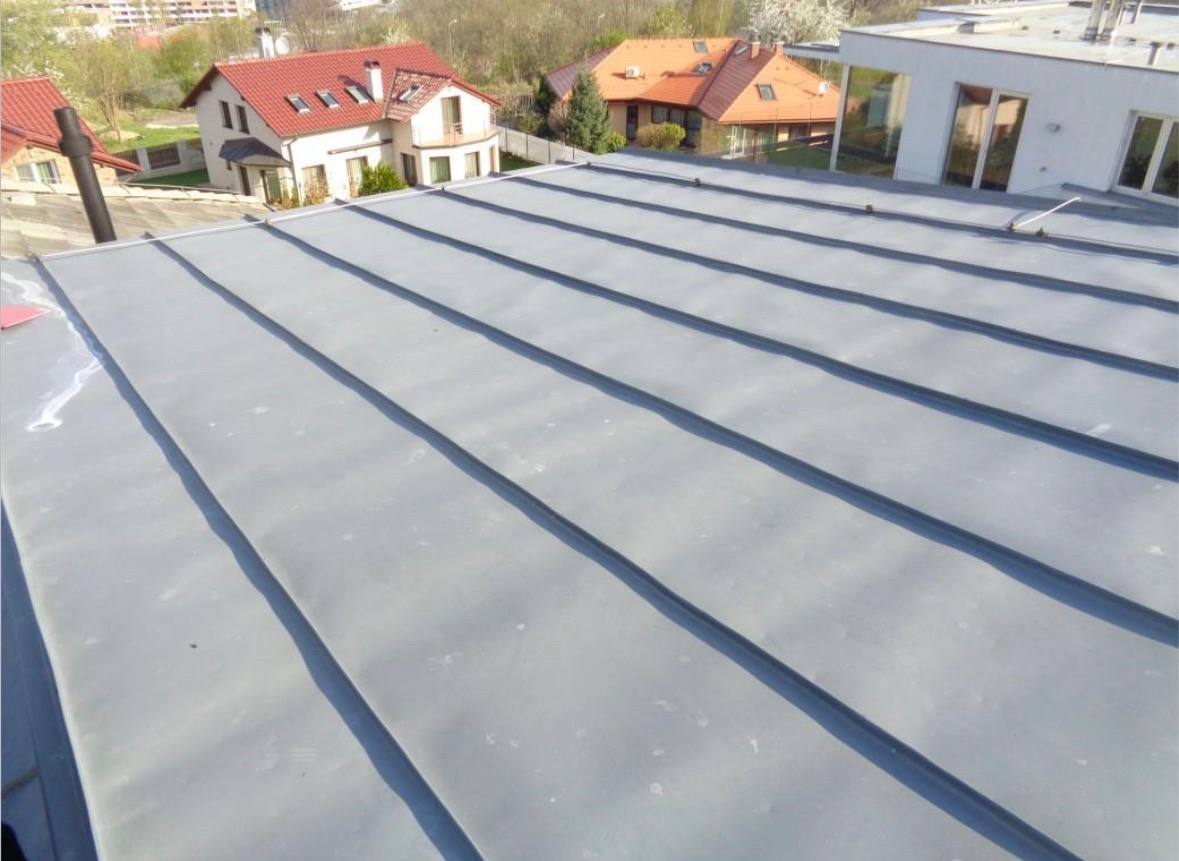

What About a Roof Pitch of 3°?
A roof pitch of around 3° is already extremely low.
There are standing seam systems that can be used at this pitch under certain technical conditions, but this is definitely not a universal rule for all standing seam roofs.
A roof with such a low pitch should always be assessed individually based on:
the roof design,
roof dimensions,
length of the metal sheets,
specific roofing material,
roofing system manufacturer,
local climatic conditions,
number of penetrations and other roof details.
